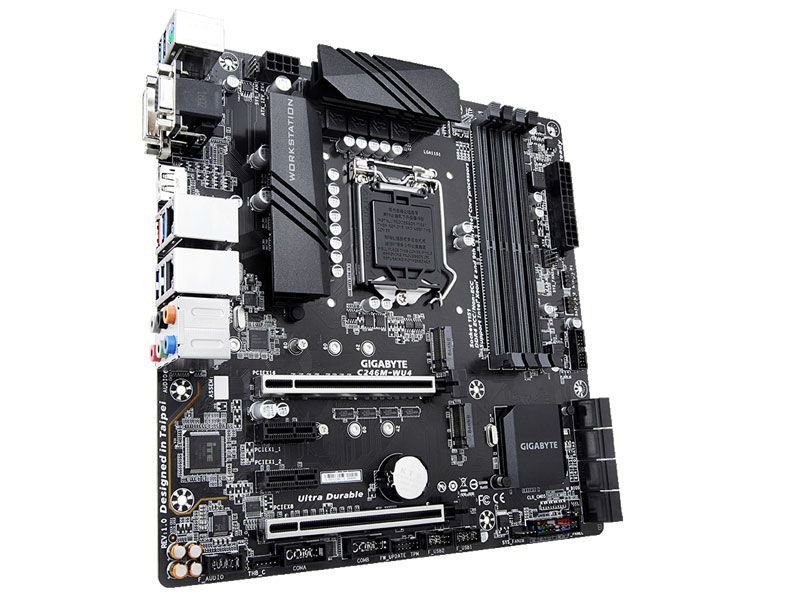

C246M-WU4 PLACA MAE SERVIDOR INTEL GIGABYTE

C246M-WU4 PLACA MAE SERVIDOR INTEL GIGABYTE

PROCESSADORES SUPORTADOS:
Intel® Xeon E-2000 Series
PROCESSADORES COMPATÍVEIS:
053644-3 - BX80684E2274G QUAD CORE E2274G 4,00GHZ 8MB LGA 1151
053648-9 - BX80684E2124G QUAD CORE E2124G 4,50GHZ 8MB LGA1151
053647-5 - BX80684E2146G HEXA CORE E2146G 4,50GHZ 12MB LGA1151
053646-1 - BX80684E2176G HEXA CORE E2176G 3,70GHZ 12MB LGA1151
053616-2 - BX80684E2226G HEXA CORE E2226G 3.40GHZ 12MB LGA1151

CHIPSET:
Intel® C246 Express Chipset

MEMÓRIA:
4 x sockets DIMM DDR4 2666/ 2400/2133 Mhz
Suporta até 128GB
ECC Un-Buffered DIMM
non-ECC Un-Buffered DIMM

MEMÓRIAS ECC COMPATÍVEIS:
051313-2 - KSM24ES8/8ME 8GB 2400MHZ ECC CL17 DIMM 1RX8 MICRON
051935-8 - KSM24ED8/16ME 16GB 2400MHZ ECC CL17 DIMM 1RX8 MICRON
GRÁFICOS ONBOARD:
1 x VGA
1 x DVI-D
1 x DisplayPort

ÁUDIO:
Realtek ALC892
REDE:
2 x Intel® GbE LAN chips (10/100/1000 Mbit)

SLOTS DE EXPANSÃO:
1 x PCI Express x16, rodando a x16
1 x PCI Express x16, rodando a x8
2 x PCI Express x1

ARMAZENAMENTO:
8 x SATA 3 - RAID 0, RAID 1, RAID 5 E RAID 10
1 x M.2 (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
1 x M.2 (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A)


USB:
1 x USB 3.1 Gen 2 Type-A port (Vermelho) no painel traseiro.
7 x USB 3.1 Gen 1 ports (5 portas no painel traseiro. 2 portas disponivel através de conector INTERNO)
4 x USB 2.0/1.1 portas disponivel através de conector INTERNO


CONECTORES INTERNOS I/O:
1 x 24-pin ATX main power
1 x 8-pin ATX 12V power
2 x M.2 Socket
8 x SATA 6Gb/s
1 x CPU fan
3 x system fan
1 x front panel
1 x front panel audio
1 x USB 3.1 Gen
2 x USB 2.0/1.1
1 x S/PDIF Out
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module (TPM)
2 x serial port
1 x Clear CMOS jumper

CONECTORES TRASEIROS:
1 x PS/2
1 x D-Sub
1 x DVI-D
1 x DisplayPort
1 x USB 3.1 Gen 2 Type-A porta (vermelho)
5 x USB 3.1 Gen 1 portas
2 x RJ-45 portas
6 x audio jacks

PADRÃO:
Micro ATX Form Factor; 24.4cm x 24.4cm

PRODUTO COM PPB
